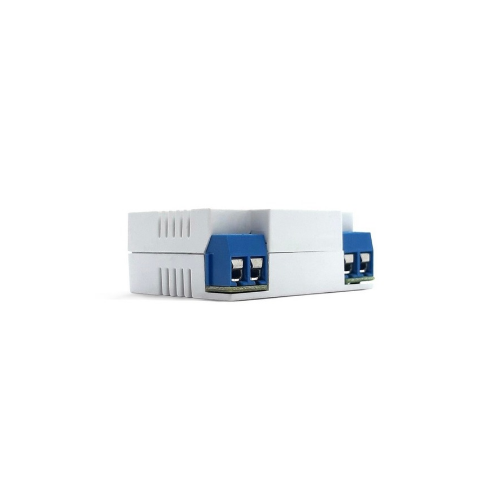

U-Prox Relay DC

The U-Prox Relay DC is a wireless low-current relay module designed for home and office automation, allowing the remote control of various low-voltage electrical devices via the U-Prox security system and its mobile applications. Key Features and Specifications Remote Control: Users can remotely manage connected devices (e.g., controlling lights, roller shutters, gates, or electric locks) using the U-Prox Home mobile app. Flexible Operation Modes: The relay can be configured with different operating logic depending on the application: Bistable (Trigger) Mode: The relay switches on with one command and off with the next (latching operation). Impulse (Momentary) Mode: The relay activates for an adjustable duration (from 0.1 to 250 seconds), ideal for momentary actions like opening a gate. Event-Based Control: The relay can be automated to activate or deactivate based on system events, such as arming/disarming the alarm or an alarm trigger. Power Supply: The module itself requires a 12V DC power source (operating range 10.8 to 13.2 VDC). Output Contacts: It features a "dry contact" output (Common/Normally Open - COM/NO), rated to switch loads up to 10A at 250V AC or 30V DC max. Wireless Communication: It uses U-Prox's secure, two-way, 256-bit encrypted radio interface, ensuring reliable communication with the control panel with a range of up to 4800 meters in open space. Installation: The compact, minimalist design is suitable for concealed installation inside junction boxes or behind wall switches. All installation work should be performed by a qualified electrician. Configuration: Full setup, testing, and firmware updates are performed remotely using the U-Prox Installer mobile application or web portal.
