U-Prox Relay AC

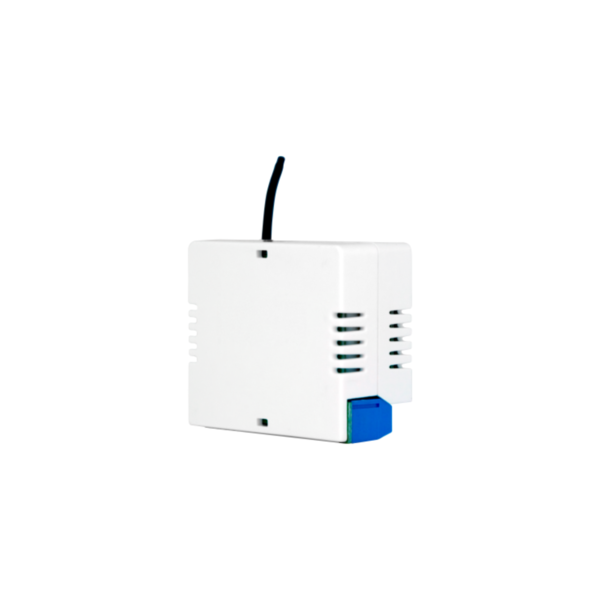

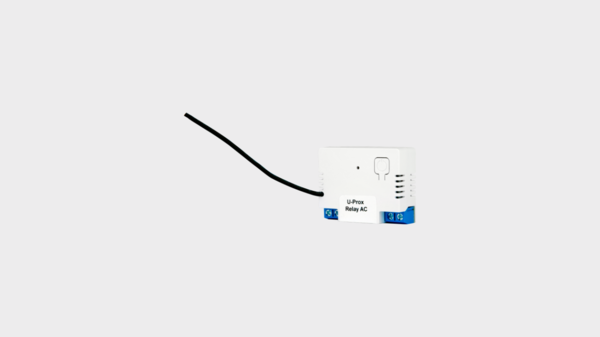

The U-Prox Relay AC is a wireless smart relay module designed to remotely control high-voltage Alternating Current (AC) electrical appliances and circuits within the U-Prox security system. It allows users to manage power supply for lights, heating, ventilation, and other devices via their smartphone app and also offers energy consumption monitoring. Key Features and Specifications Power Supply: The module connects directly to the mains power supply, operating within a range of 110–250V AC, 50-60Hz. Maximum Load: The built-in relay can switch loads up to 10A (around 2.5kW or 3kW, depending on the region/model), making it suitable for controlling standard household appliances or lighting circuits. Energy Monitoring: A notable feature is its ability to measure the power consumption of the connected device, providing users with insights into their energy usage via the U-Prox Home app. Remote Control: Users can switch devices on or off, set schedules, or link operations to security system events (e.g., turning lights on when an alarm is triggered) using the mobile app. Operation Modes: Bistable Mode: Works like a standard light switch (on/off). Impulse Mode: Provides a momentary pulse of power for a set duration, useful for controlling electric gates or garage doors. Wireless Communication: It utilizes the U-Prox secure, two-way, 256-bit encrypted radio protocol, with an exceptional range of up to 4800 meters in open space. Installation: The compact size (44 x 36 x 19.4 mm) allows for concealed installation inside standard wall switch boxes or other protective enclosures. Safety: Installation must be performed by a qualified, licensed electrician, as the device handles high voltage.
